Tekno NB/EB48 2.2 Wide Rear Pivot Parts

Tekno Wide Rear Pivot Parts for the Tekno EB/NB48 2.2

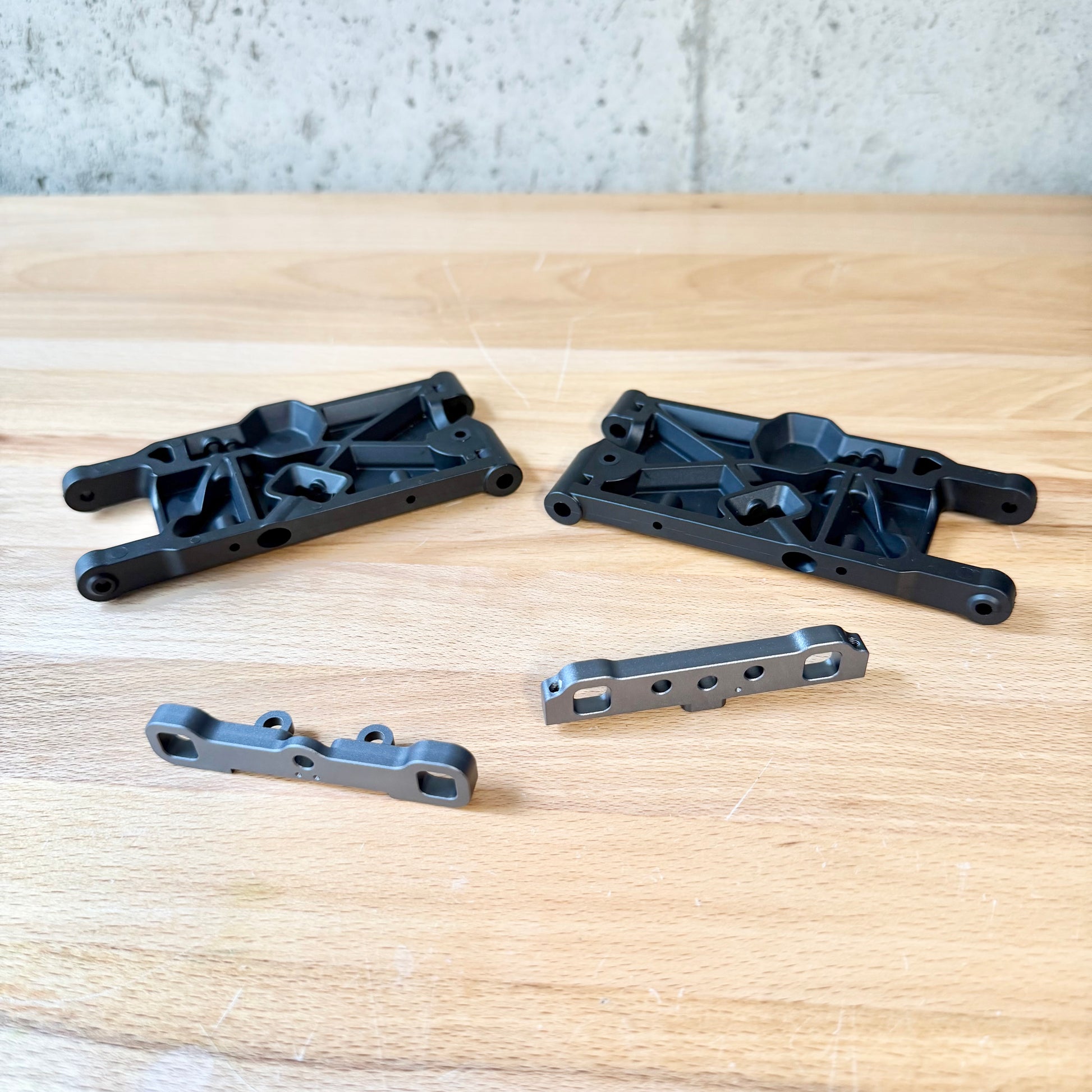

This geometry change greatly enhances the rear end stability of the Tekno NB/EB48 2.2 buggies. Added confidence and comfort in all track conditions. New wide C / D suspension blocks provide a wider pivot, and the new wide pivot rear arm, which is shorter in length, combined with the NB/EB48 2.2 rear hubs, allows you to have the correct overall width. Use the stock hinge pins and arm inserts. Shock mounting locations are the same as stock as well.

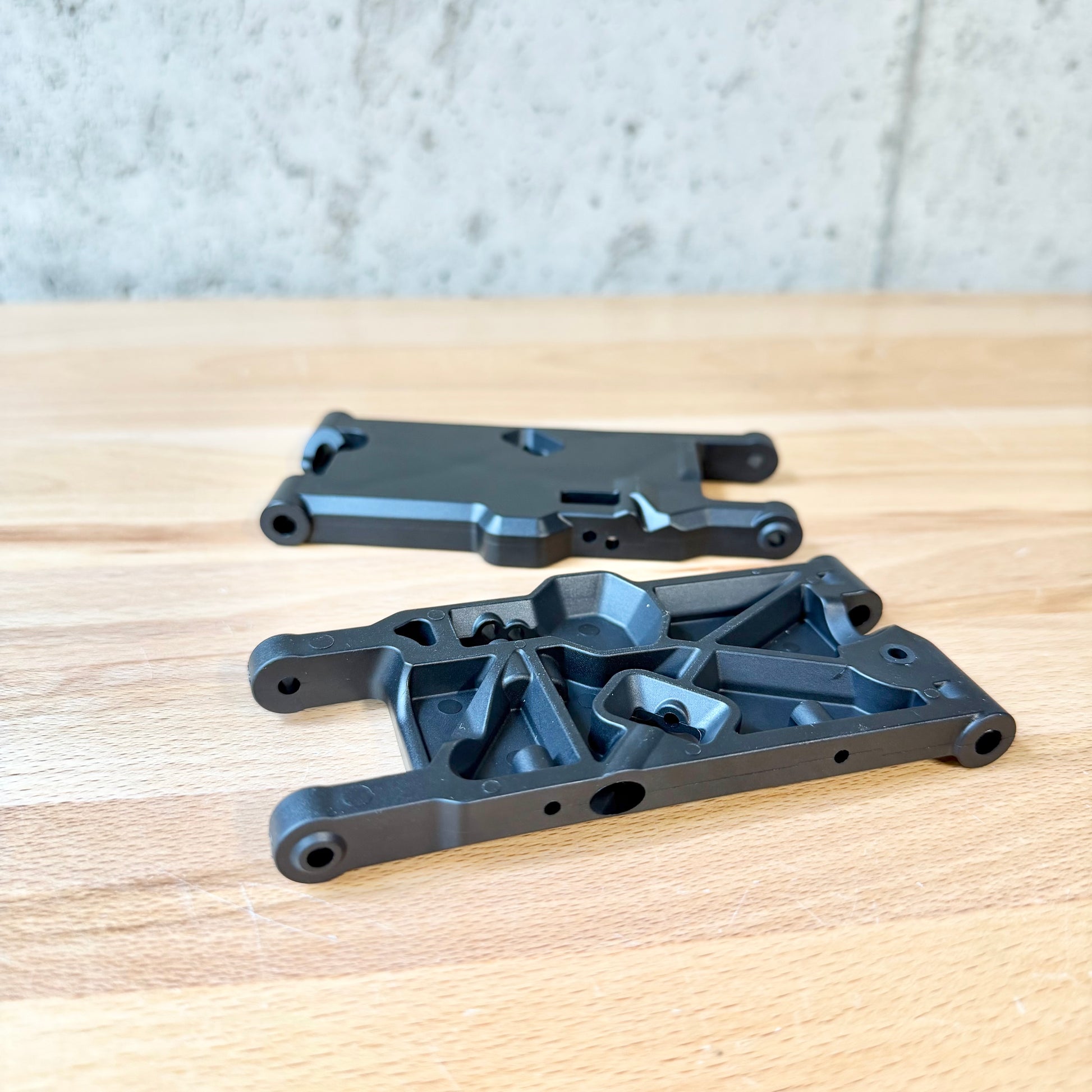

• TKR9184W - NB/EB48 Wide Pivot Rear Arm

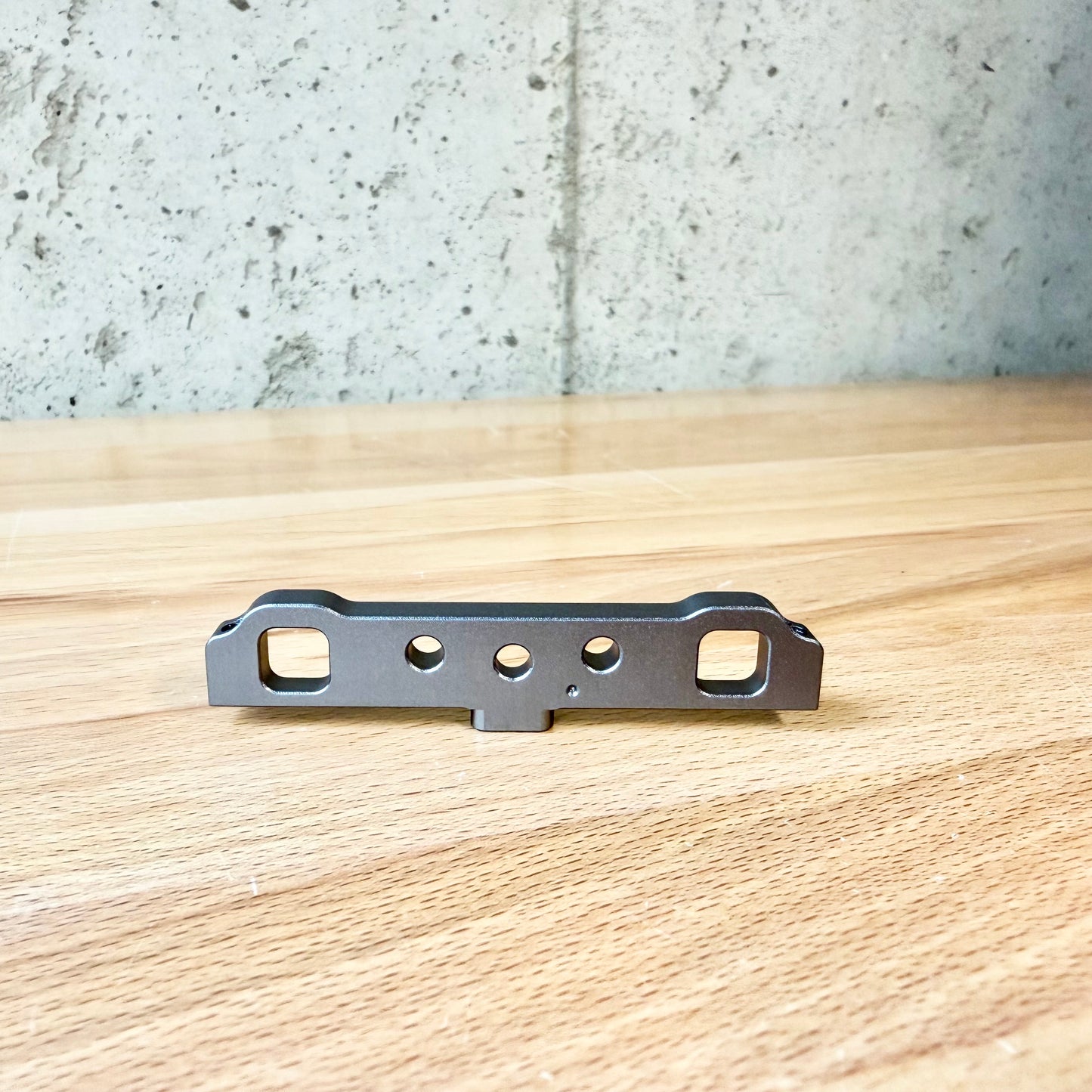

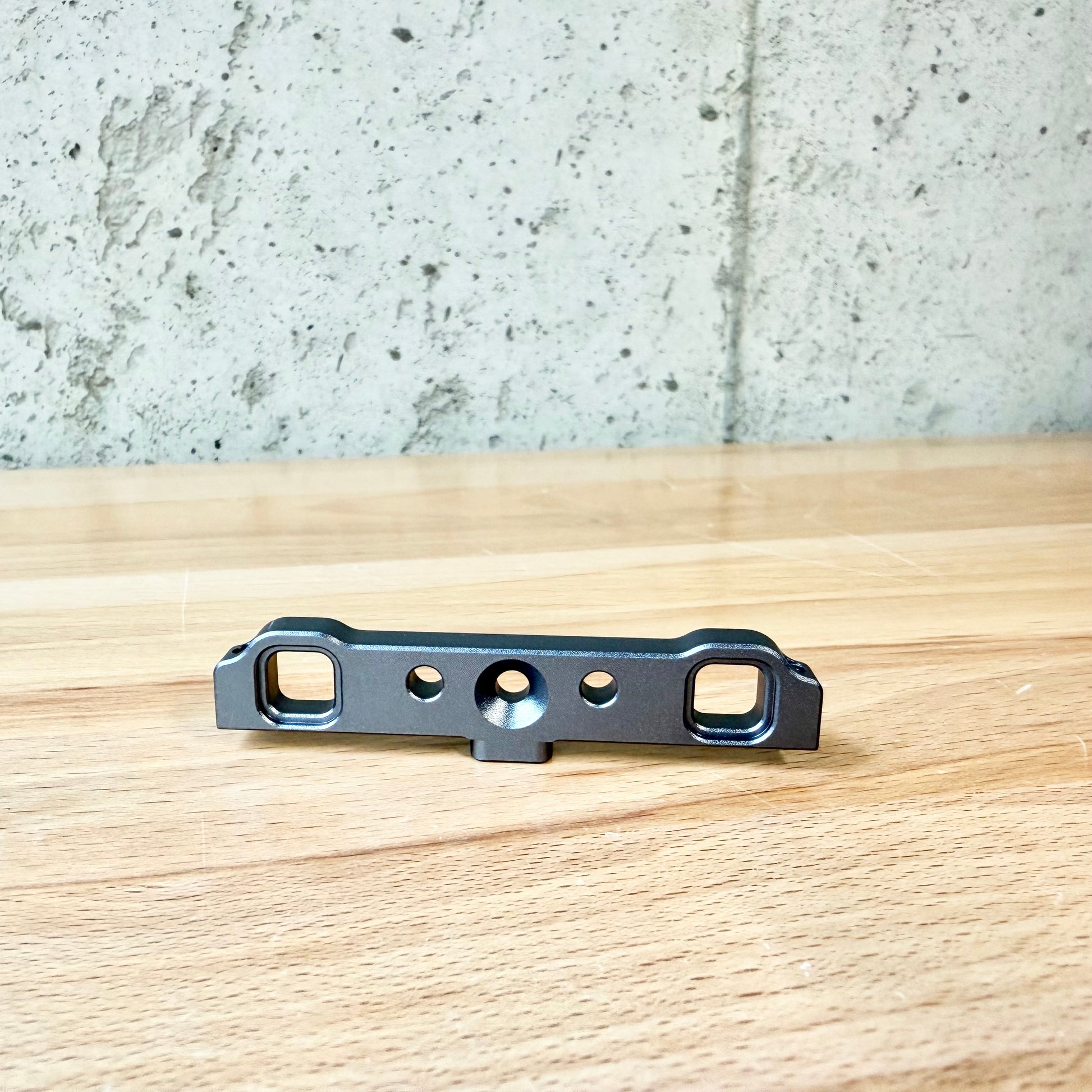

• TKR9163BW - NB/EB48 2.2 C Block (-1mm)

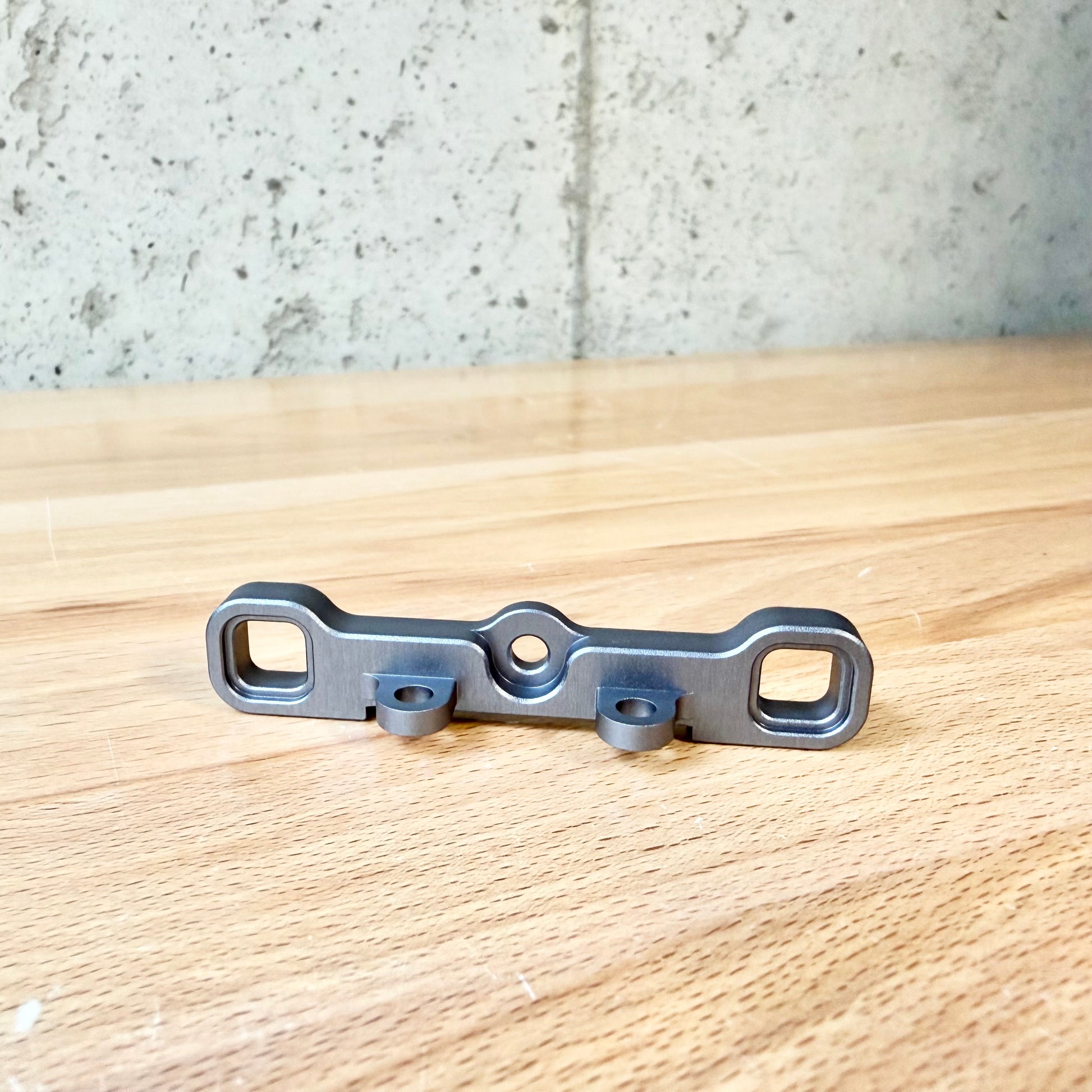

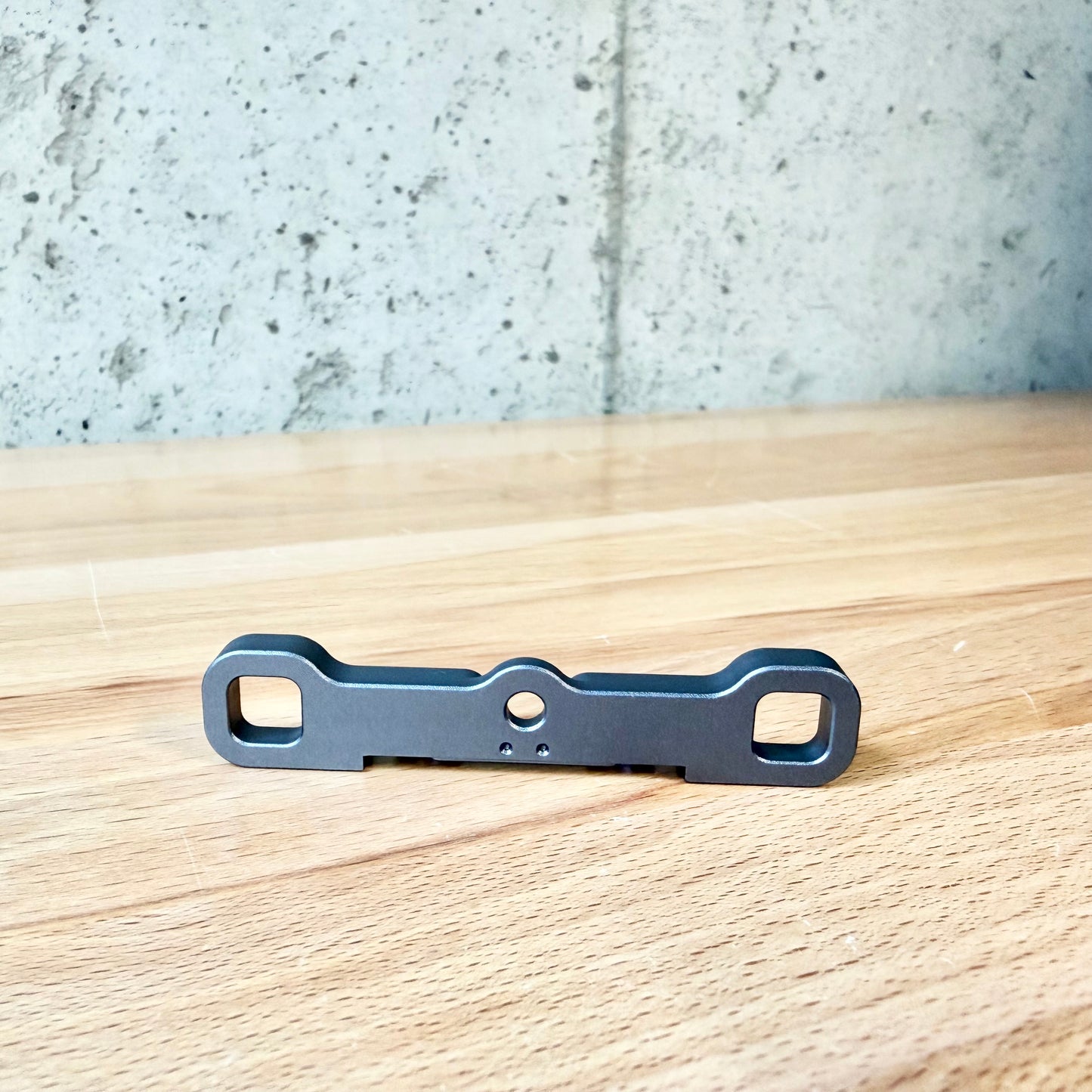

• TKR9164CW - NB/EB48 2.2 D Block (-2mm)

Things to note with these part changes

• Move your camber link from the inside row on the tower to the outside row.
• Your C/D pills can match your std kit pill in these blocks.
• New Rear Arm requires 1mm more wheelbase shims and the hub sits 1mm farther back when spaced fully forward. (possible to have wheelbase 3mm longer than with the std rear arm)

• If you were using the Truggy C/D Blocks, take note : These Blocks are 1mm wider, and the (-1mm) C Block is 1mm higher.
