VRP 20H Piston Tekno

VRP 20H Piston Tekno

Regular price $45.00 USD
Regular price Sale price $45.00 USD
Sale Sold out

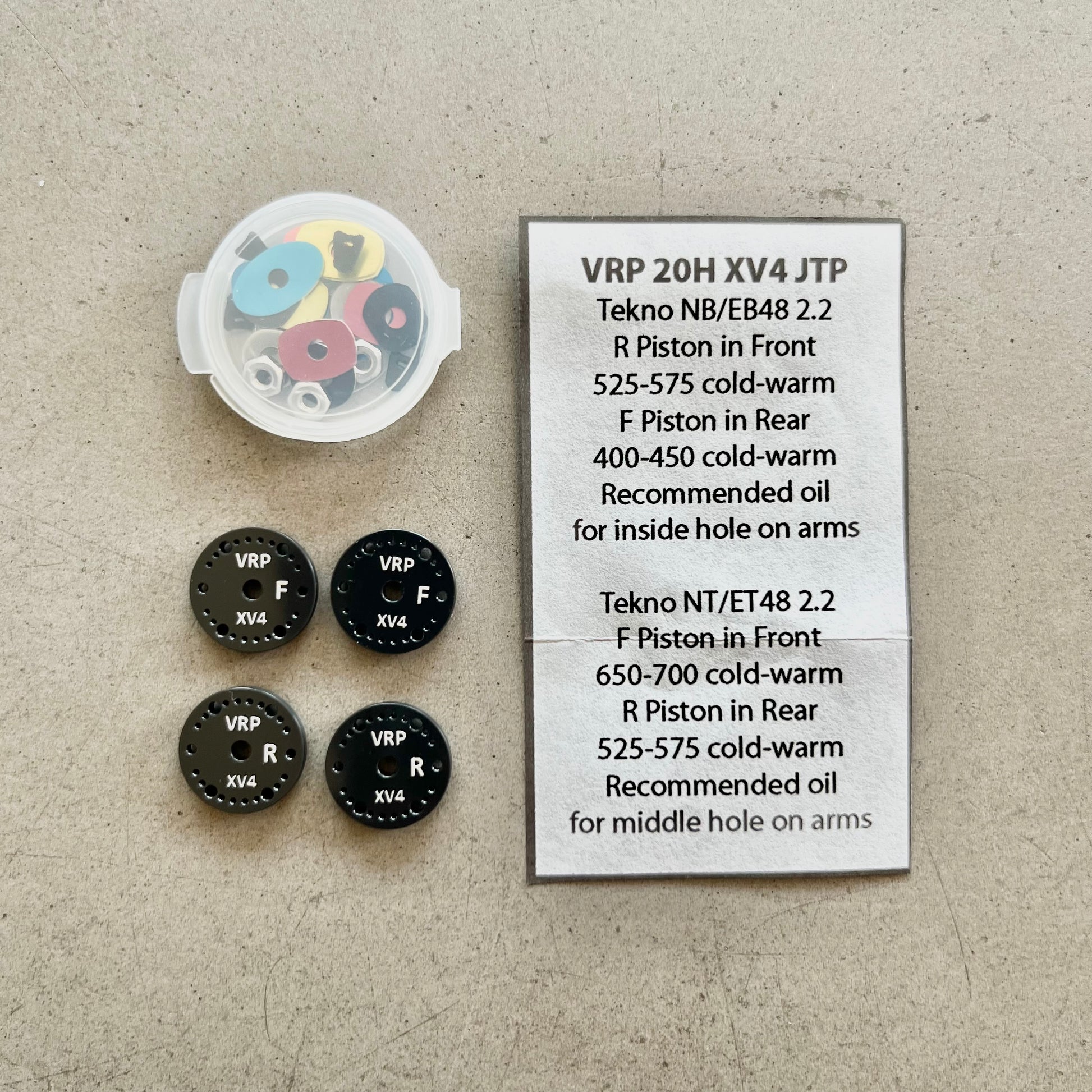

This is a set of (4) Patented VRP ‘XV4’ JTP version Shock Pistons

(2) 20H F Pistons. These are drilled 4h1.5, 16h.6mm.  The return Holes are 1.1mm. They are lasered with a “F” on them.

(2) 20H R Pistons. These are drilled 3h1.5, 1h1.6, 16h.7mm.  The return Holes are 1.2mm. They are lasered with a “R” on them.

Tekno NB/EB48 2.2 : R piston in Front, 575 warm - 525 cold temperature : F piston in Rear, 450 warm - 400 cold temperature (recommended oil for inside hole on arms)

Tekno NT/ET48 2.2 : F piston in Front, 700 warm - 650 cold temperature : R piston in Rear, 575 warm - 525 cold temperature (recommended oil for middle hole on arms)

The pistons are precision drilled on the CnC. Hand drilling this hole pattern does not have the same results. The small holes HAVE to be clean with NO burr, and they have to be straight. Thats impossible to do by hand.

The VRP ‘XV4’ Pistons are designed to have a washer under and over them. It is important to run washers and that they are correctly installed. Each set of pistons is supplied with a Washer Hardware Pack to make sure you have what you need to install them.

Each set of pistons comes with 4 different upper washers that are color coded. The washers are made to cover the rubber valves to give different rebound rates.

Black / Red / Gold / Blue : Most rebound Black, to least rebound Blue

For tracks that are loose and low grip, or very blown out with large ruts, more rebound is preferred. On smooth or tracks that have very high grip, less rebound is preferred. We suggest starting with the Black Washer in the rear pistons, and the Red Washer in the front pistons.

Made in the USA
